FB090 Wrapped Bronze Bearing

  • Material: CuSn8P,CuSn6.5P,bronze with graphite inside,CuZn31Si
  • Type: sleeve,flange.washer,thrust pads,plate,sheet,custom-made
  • Hardness:90~150 HB
  • Oil pockets: Diamond shate,spherical shape
  • Product description: FB090 Wrapped Bronze Bearing
  • INQUIRY

FB090 Wrapped Bronze Bearing


Material:

1. CuSn8P / CuSn8

2. CuSn6.5P / CuSn6.5

3. CuZn31Si

4. Bronze(graphite inside)

5. All kinds of brass,copper,bronze material


Tech. Data:

Physical and mechanical Performance

Mating Axis

Hardness

≥50 HRC

Roughness

0.4~1.0

Max Load Pressure


100 N/mm2

Max Linear Velocity


2 m/s

Max PV Value


2.8 N/mm2*m/s

Tensile Strength


460 N/mm2

Yield Strength


260 N/mm2

Hardness


90-150 HB

Working Temperature


150 ℃

Friction Coef.


0.05~0.2u

Heat Conducting Coef.


58W/(m*k)

Heat Expansion Coef.


18.5

(10(-6)k(-1)



Feature:

High load capacity and long life. in place of traditional bronze bush,its more cheap and more compact.


Application:

applied in conditions of heavier load but low running velocity,such as on agricultural,building and engineering machines.

widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.


Photo:

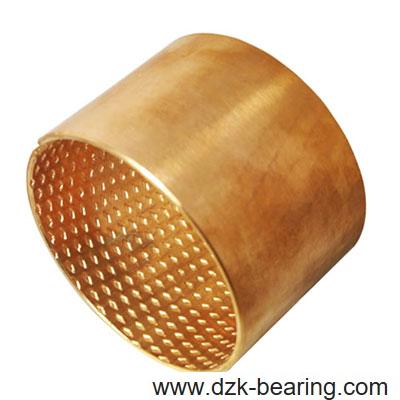

FB090 Sleeve Bush With Diamond Hole Shape Bushing Bronze Wrapped Bearing

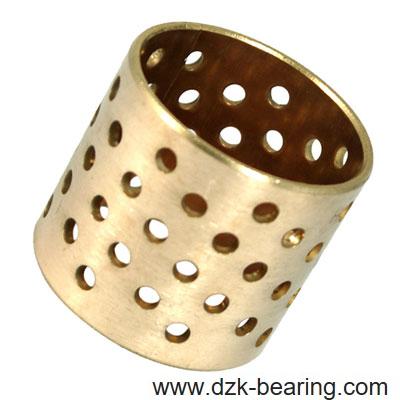

FB090 Sleeve Bush With Round Hole Shape Bushing Bronze Wrapped Bearing

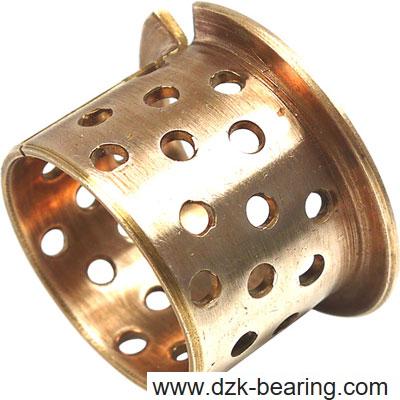

FB090 Wrapped Bronze Flange Bearing

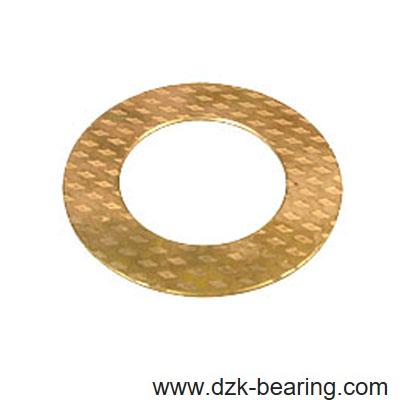

FB090 Wrapped Bronze Washer

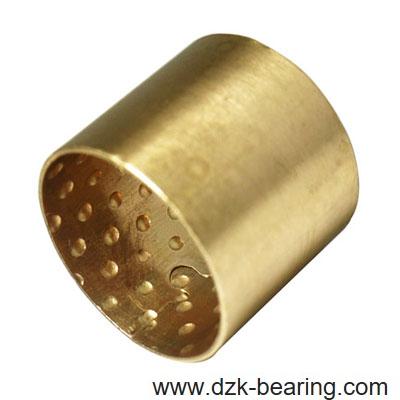

FB092 Sleeve Bush Wrapped Bronze Bearing

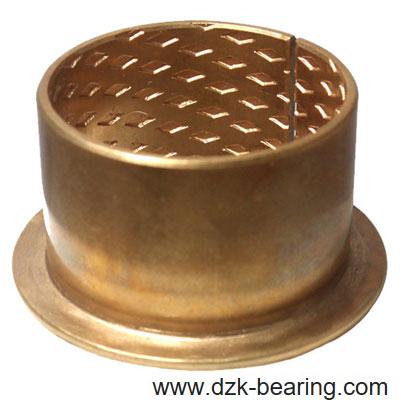

FB092 Flange Bronze Bearing Bushing

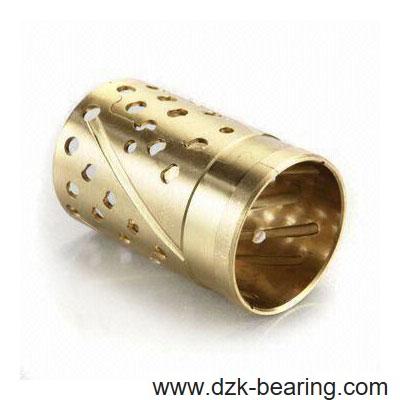

FB09G FB08G Bronze With Graphite Inside Bearing


Customized:

Client Drawing,different material,size and type,open seam can do split(straight seam) or clinch lock(hasp),etc.
