Bimetal Bearing / Bi-metal Bushing / JF Bimetallic Bush

  • Material:steel with bronze alloy
  • Type:sleeve,flange,washer,trust pads,skateboards,plate,sheet,custom-made
  • Feature:Maintenance-free,High strength and good lubricating
  • Indentations:Split,Clinch lock
  • Product description: Bimetal Bearing Bi-metal Bushing JF Bimetallic Bush
  • INQUIRY

Bimetal Bearing / Bi-metal Bushing / JF Bimetallic Bush


Material:

1. Steel + Bronze alloy (CuPb10Sn10) + PTFE

2. Steel + Bronze alloy (CuPb10Sn10)

3. Steel + Bronze alloy (CuSn4Pb24)

4. Steel + Bronze alloy (CuPb24Sn)

5. Steel + Alloy stage (AlSn20Cu)

6. Steel + Bronze alloy (CuPb30)


Tech Date:

mechannical performance

Load capacity

Static load

150N/mm2

Max.Working temperature

Grease Lubrication

150℃

Oil Lubrication

250℃

PV value limit

Oil lubrication

10N/mm2.m/s

Dry lubrication

2.8N/mm2.m/s

Linear Velocity

Dry Friction

0.4m/s

Grease Lubrication

2.5m/s

Mating Axis

Hardness

≥53 HRC

Roughness

Ra-0.32~0.63

Anti-tensile Strength

185 N/mm2

Alloy Hardness

HB 60~90

Friction coefficient

0.05~0.22

Themal conductivity

47W/mk

Heat-expansion Coefficient

18x10(-6)/k



Application:

used to make wrapped bushes,thrust washer and bushes on connecting rod level of gas engine,con-rod of automobile engines,transmission gearbox,engineering and agriculture machinery etc.

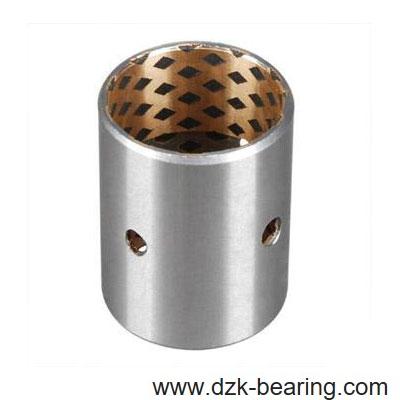

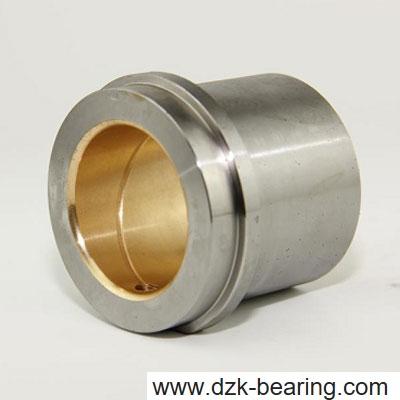

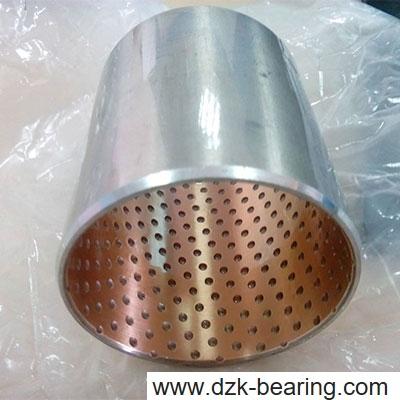

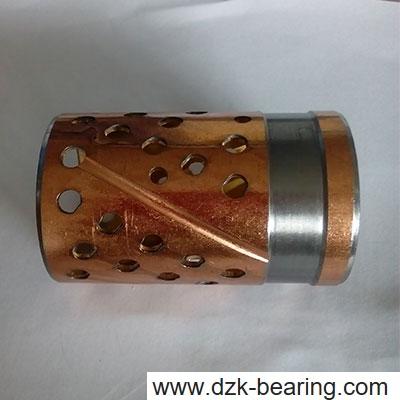

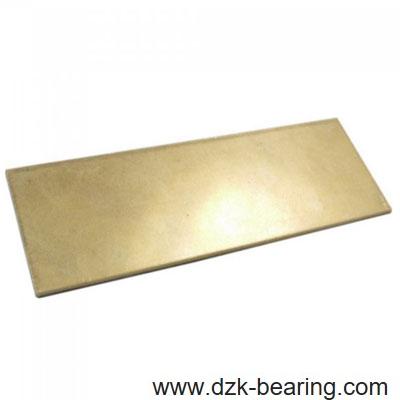

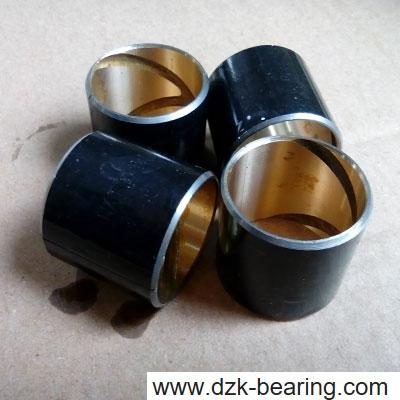

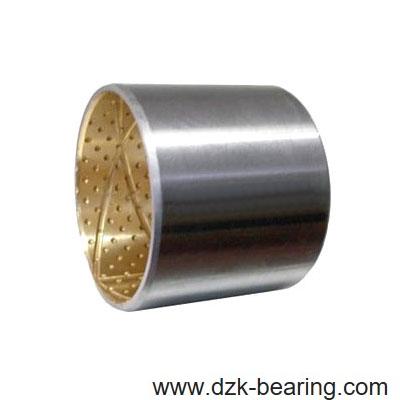

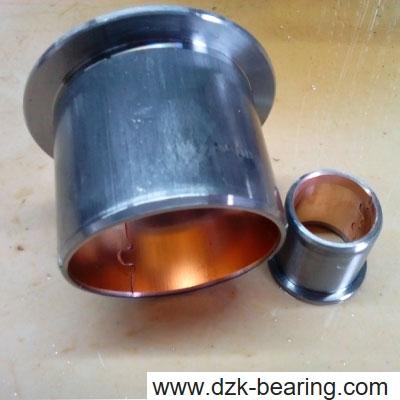

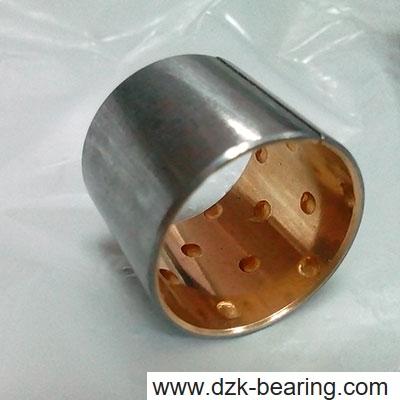

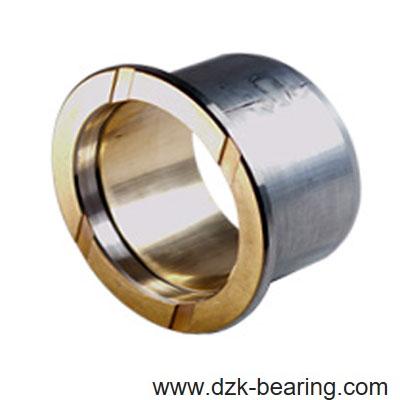

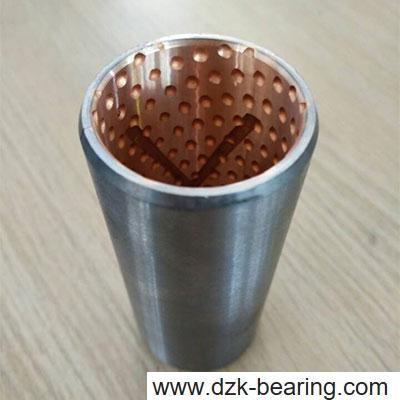

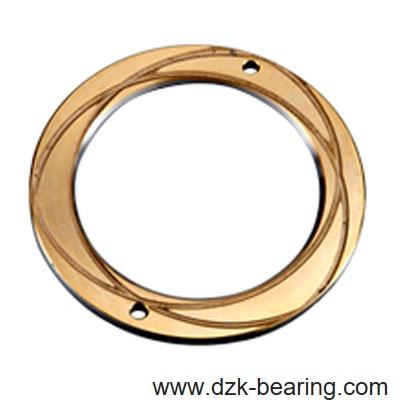

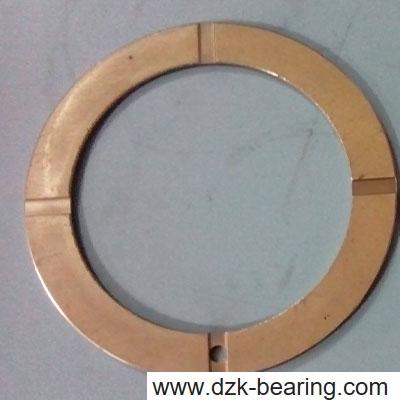

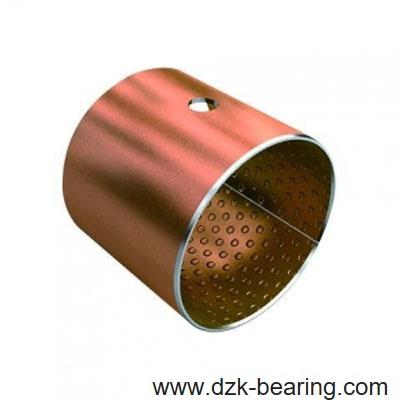

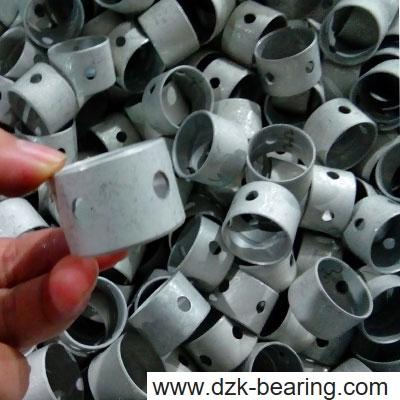

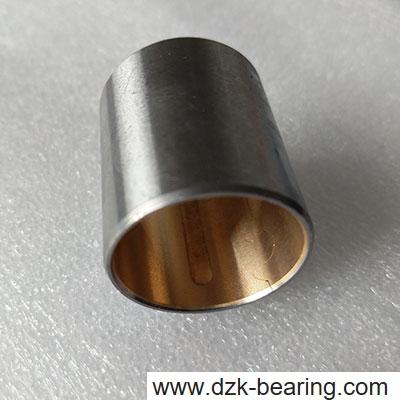

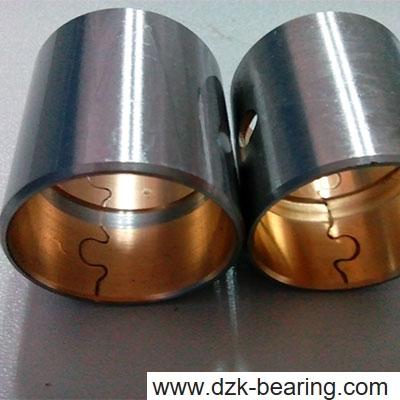

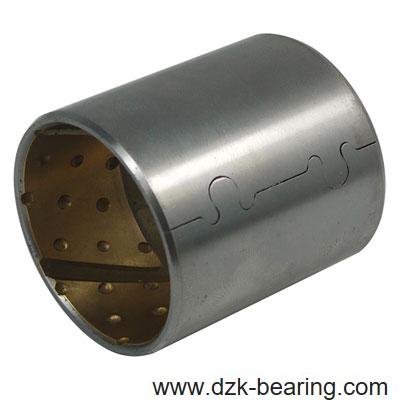

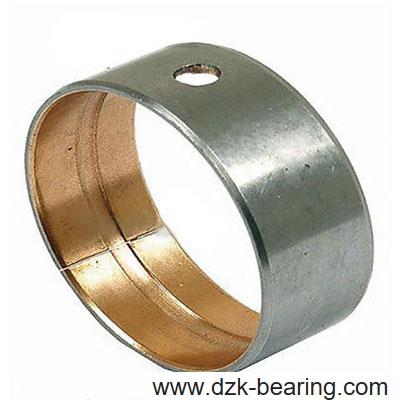

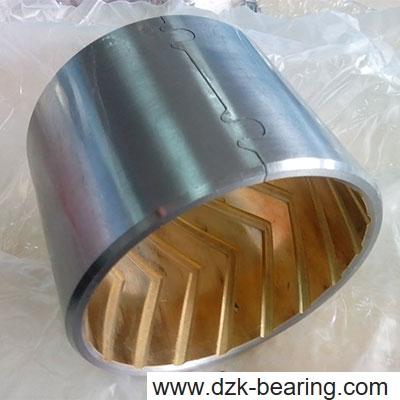

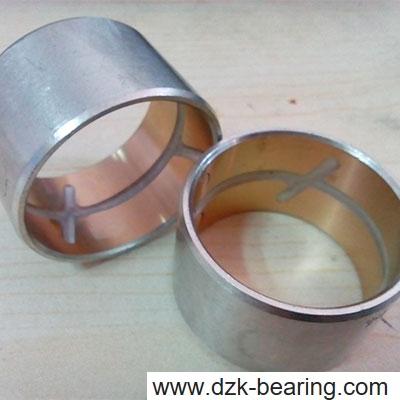

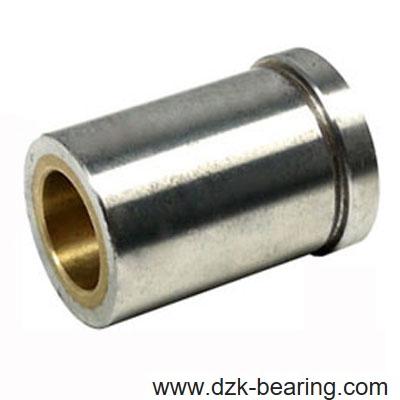

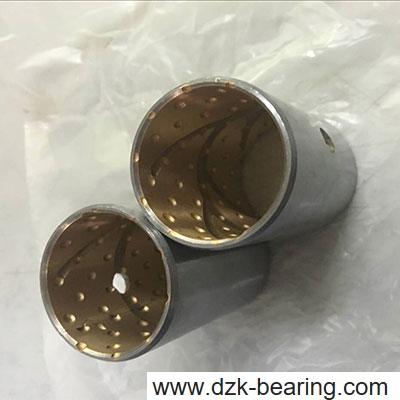

Photo:


Customized:
Client Drawing,with hole or without hole,different size and type,with ptfe or not,surface treatment etc.
