Steel Bearing Bushing

  • Material:Steel,SPCC,SUS304,45,40r,20,20Cr,GCr15 etc
  • Type: sleeve,planar,crosshair,reticular
  • Product description: Steel Bearing Bushing
  • INQUIRY

Steel Bearing Bushing

Tech.Data Grade 601 602 603

Material SPCC/SUS304 45,40r,20,20Cr,GCr15 45,40Cr,GCr15 etc
Physical and mechanical performance Hardness ≥HV600 40~46HRC,52~62HRC 40~62HRC

Heat treatment
Quenched:quenched with carbon,high-frequent quenched inner surface Overall quenched,inner surface can be phosphatized

Friction coefficient
<0.17 <0.17

Max temperature 350℃ 350℃
350℃

Max load capacity 150N/mm² 150N/mm²
250N/mm²
Typical application
It is made of high quality low-carbon steel or stainless steel with a special technique.it is widely applied to automobile parts,heavy-duty machinery etc. Cross Oil Groove can form the oil film between shaft and bush.it has high load capacity and wear resistance,the product is applied in excavators,cranes and some crucial parts of the construction machine. It is a new generation of construction machinery bushing.it can remove the lubricating blind spot on inner surface.the widespread oil grooves increase storage of oil,which can prolong the interval of filling.the bushing has high load capactity,wear resistance and good lubricating performance.it can be applied in excavators,loaders and some crucial parts of construction machine.


Photo:

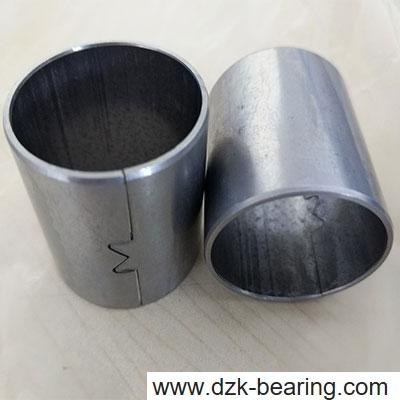

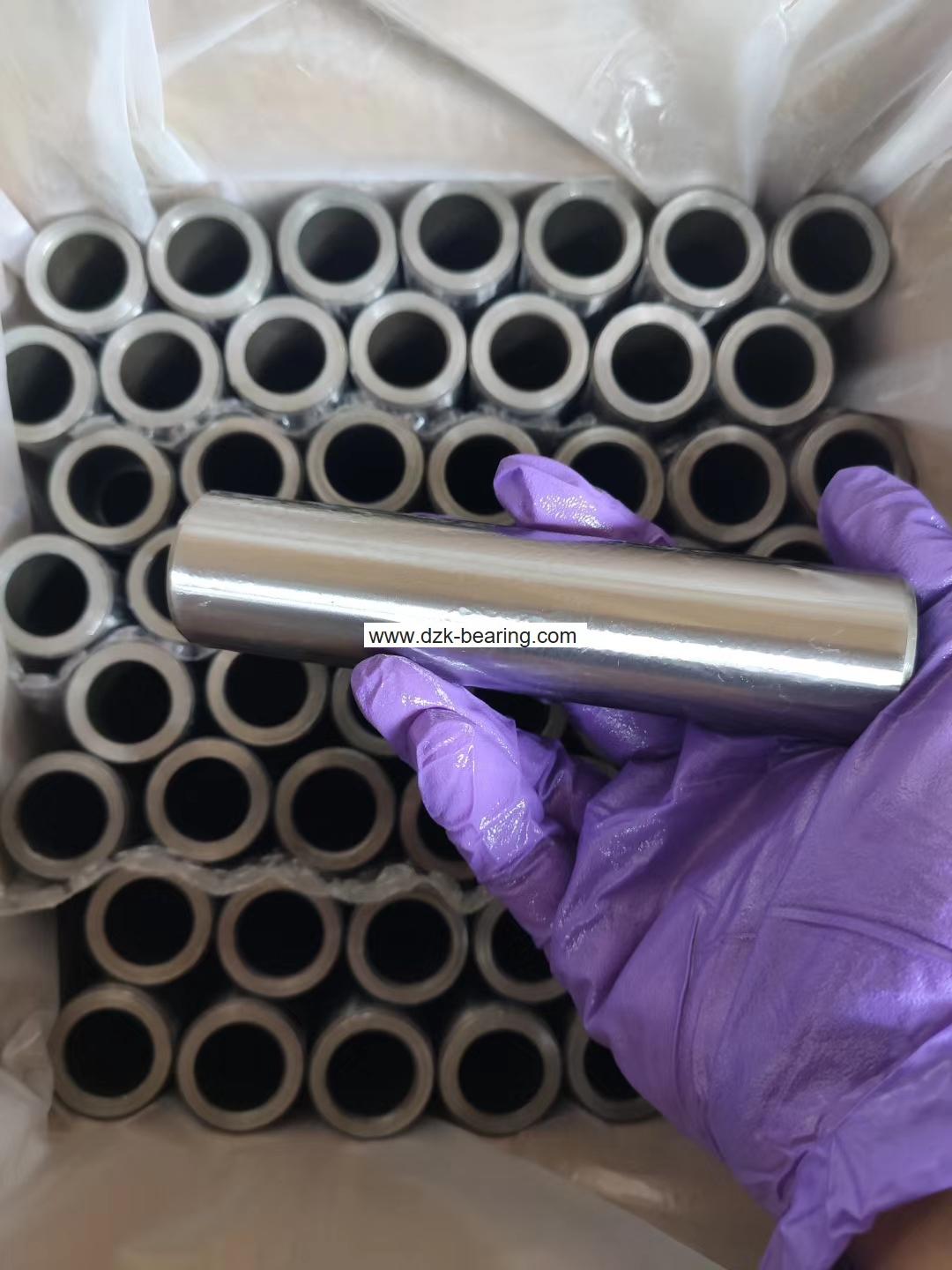

SPCC carbon steel bushing

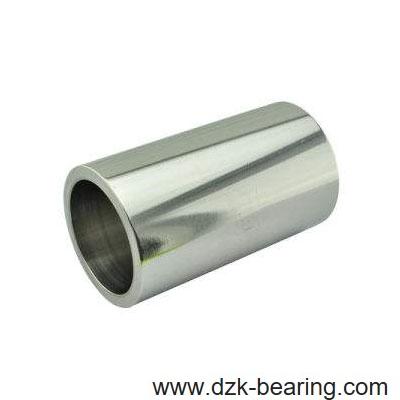

SUS304 Stainless Steel Bushing

steel bearing

45x58x68mm steel bearing bushing

45x58x110mm steel bearing bushing



make according to your drawing, sample and all various of non-standard bearing
