JDB Bronze Graphite Bearing Sold Lubricating Bushing

  • Material:bronze CuZn25Al6Fe3Mn3+graphite,steel CuSn6Zn6Pb3 or HT-250 cast iron with graphite,CuZn24Al6,ZCuAl9Fe4Ni4Mn2,CuSn12,CuCr150
  • Type:sleeve,flange,washer,trust pads,skateboards,plate,wear sheet,custom-made
  • Feature:maintenance free bearing solution, particularly for high load, intermittent of oscillating motion.
  • Product description: graphite plugged tin bronze oiles bearing,#500 oilless bearing,self-lubricating bushing,,guide bushing and graphite filled bearings
  • Product description: JDB Bronze Graphite Bearing Sold Lubricating Bushing
  • INQUIRY

JDB Bronze Graphite Bearing Sold Lubricating Bushing


Material:

1. CuZn25Al6Fe3Mn3 + Graphite

2. ZCuAl9Fe4Ni4Mn2 + Graphite

3. ZCuSn5AlPb5Zn5 + Graphite

4. ZCuSn10Zn2 + Graphite

5. HT250# Cast Iron + Graphite

6.CuSn6Zn6Pb3 + graphite or MOS2

7.CuSn12 + Graphite.

8. CuZn25Al6Fe3Mn3 (High-stress Brass)


Tech Date:

Physical and mechanical Performance

Density

8.2 g/cm3

Linear Expansion Coefficient

1.6-2.0 10(-5)/℃

Heat-conducting Coefficient

38-55W(/m.k)

Tensile Strength

≥755 N/mm2

Anti-compact Tenacity

≥400-500 KJ/m2

Hardness

≥ 210 HB

Flexibility Coefficient

100-140 KN/mm2

Tensility

≥ 12%

Friction

Oil Lubrication

0.03u

Dry Lubrication

0.16u

Working Temperature Limits

-40℃ ~+300℃

Max Load Pressure

100N/mm2

Max Linear Velocity

0.50 m/s

Max PV Value

1.65N/mm2.m/s




Application:

used on consecutive casting and rolling machines,mine-exploiting equipments,ships,steam engine,injection molders and auto molds,anti-abrasion and anti-erosion parts,light industrial machines,tools,moving belt in the drying machine,door of the fireplace,instance,on no oil parts on the building,metallurgy and transportation machines,machinetool,agricultural machinery,crane electromotor,spring pin,steering shaff and transmission etc


Photo:

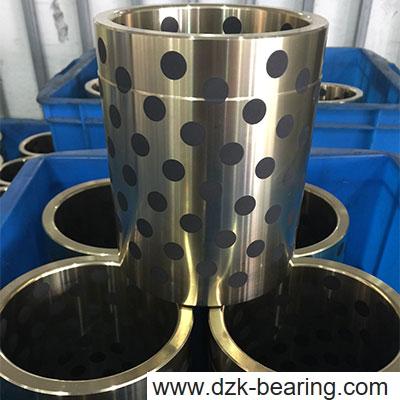

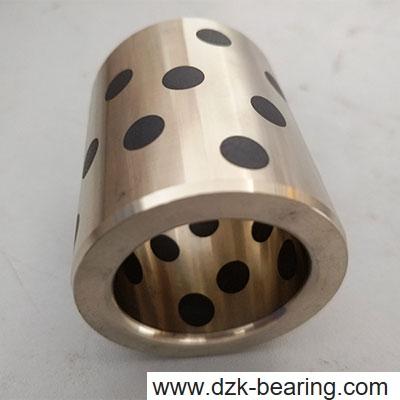

JDB bronze graphite bearing sleeve type:

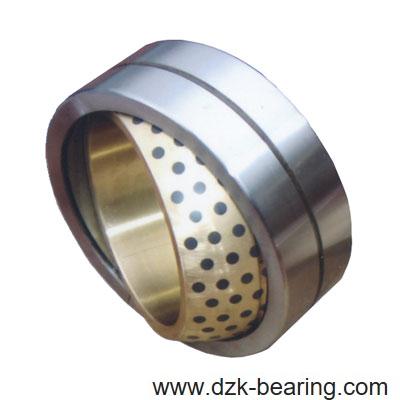

Custom-made guide bearing:

Cast Iron with Graphite bush:

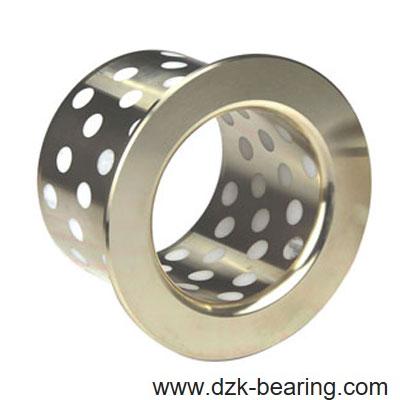

Flange bronze graphite bushing:

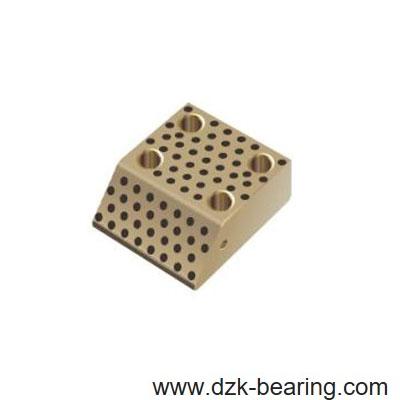

Slide Plate,Skateboards,Thrust Washers,Customized --- Brass Graphite Bushing Solid Lubricating Bearing:




Customized:

Client Drawing,different material,size and type,with graphite or not,etc.
