FB Bronze Wrapped Bearing
FB092 Wrapped Bronze Bearings
- Material: CuSn8P,CuSn6.5P,bronze with graphite inside,CuZn31Si
- Type: sleeve,flange.washer,thrust pads,plate,sheet,custom-made
- Hardness:90~150 HB
- type of lock: split bushing
- Product description: FB092 Wrapped Bronze Bearings
FB092 Wrapped Bronze Bearing
Material:
1. CuSn8P / CuSn8
2. CuSn6.5P / CuSn6.5
3. CuZn31Si
4. Bronze(graphite inside)
5. All kinds of brass,copper,bronze material
Tech. Data:
|
Physical and mechanical Performance |
Mating Axis |
Hardness |
≥50 HRC |
|
Roughness |
0.4~1.0 |
||
|
Max Load Pressure |
|
100 N/mm2 |
|
|
Max Linear Velocity |
|
2 m/s |
|
|
Max PV Value |
|
2.8 N/mm2*m/s |
|
|
Tensile Strength |
|
460 N/mm2 |
|
|
Yield Strength |
|
260 N/mm2 |
|
|
Hardness |
|
90-150 HB |
|
|
Working Temperature |
|
150 ℃ |
|
|
Friction Coef. |
|
0.05~0.2u |
|
|
Heat Conducting Coef. |
|
58W/(m*k) |
|
|
Heat Expansion Coef. |
|
18.5 (10(-6)k(-1) |
Feature:
High load capacity and long life. in place of traditional bronze bush,its more cheap and more compact.
Application:
applied in conditions of heavier load but low running velocity,such as on agricultural,building and engineering machines.
widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.
Photo:

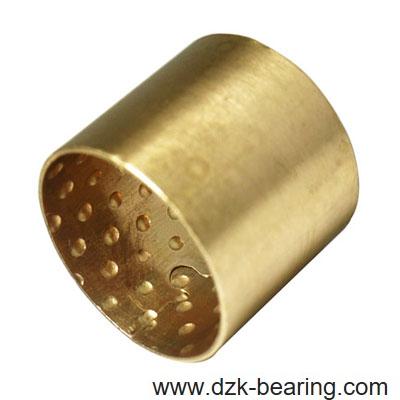

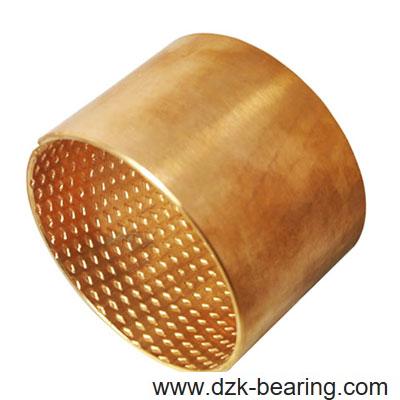

FB092 Sleeve Bush Wrapped Bronze Bearing

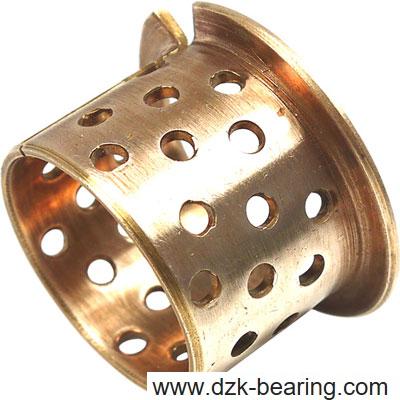

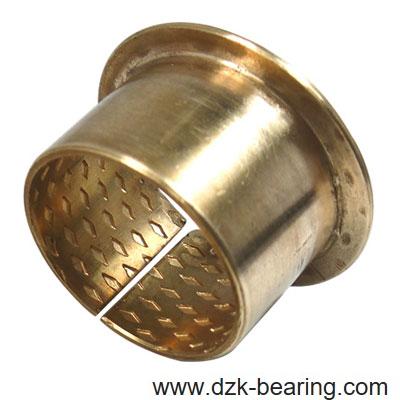

FB092 Flange Bronze Bearing Bushing

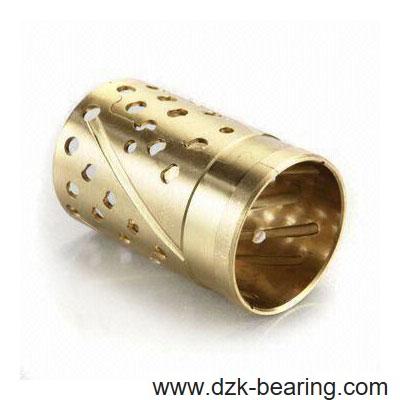

FB090 Sleeve Bush With Diamond Hole Shape Bushing Bronze Wrapped Bearing

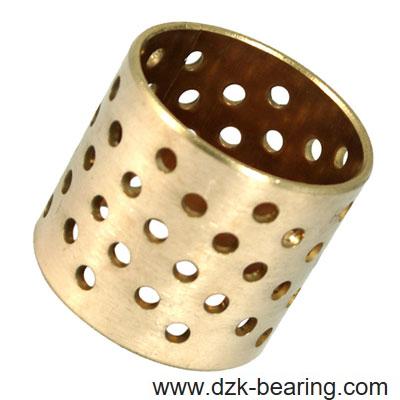

FB090 Sleeve Bush With Round Hole Shape Bushing Bronze Wrapped Bearing

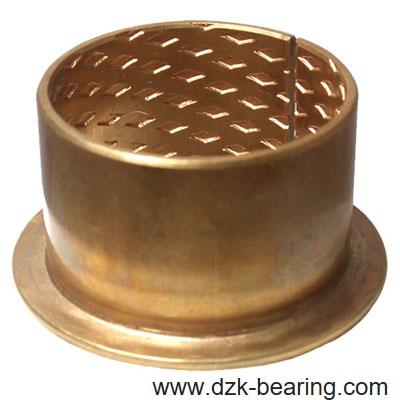

FB090 Wrapped Bronze Flange Bearing

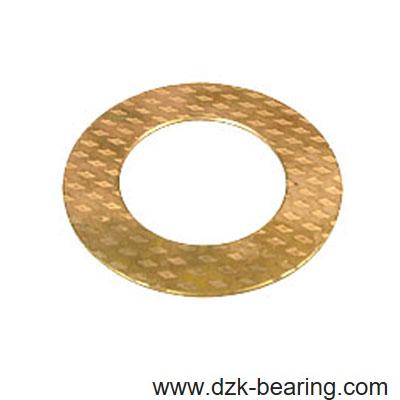

FB090 Wrapped Bronze Washer
FB09G FB08G Bronze With Graphite Inside Bearing
Customized:
Client Drawing,different material,size and type,open seam can do split(straight seam) or clinch lock(hasp),etc.
