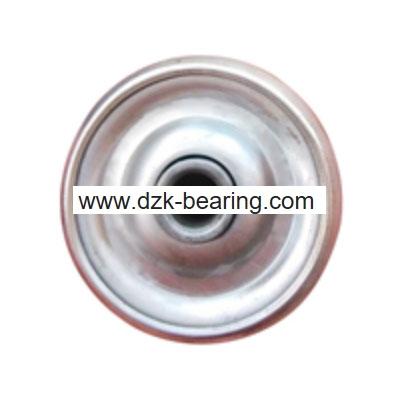

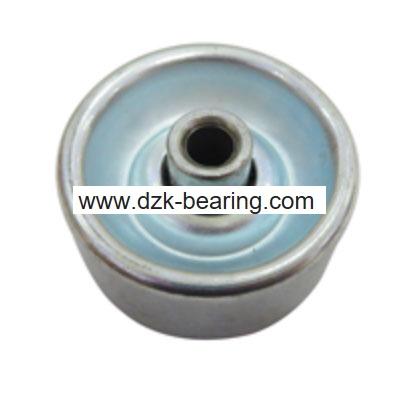

Skate Wheel

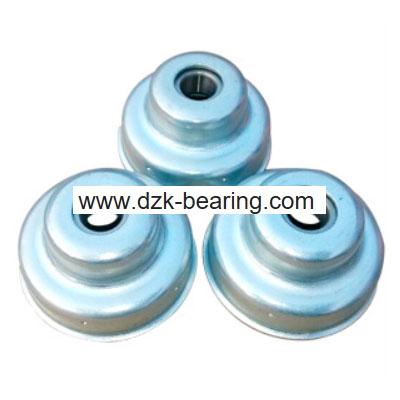

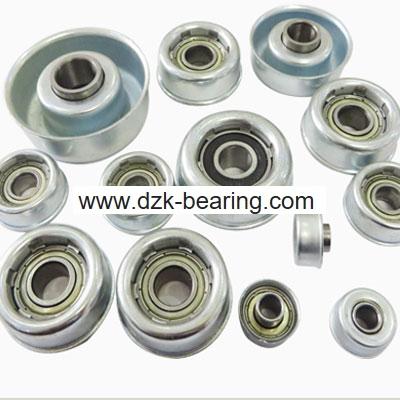

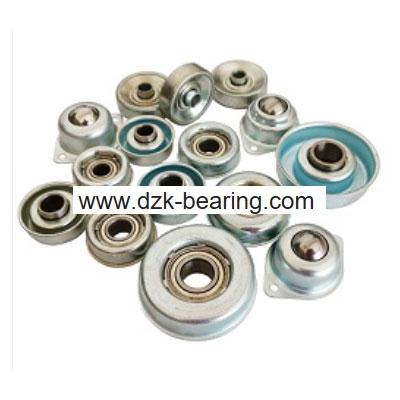

Stamping End Cap Bearing Housing Roller Conveyor Bearings
- Name: Skate wheels conveyor bearing
- Material: steel,cold plate galvanizing
- diameter size: 38mm,48mm,50mm etc
- hole size: 6mm, 8mm etc

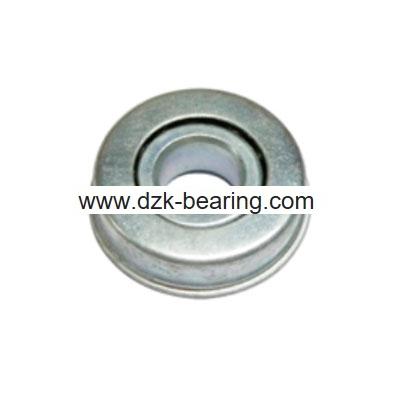

- Product description: Stamping End Cap Conveyor Rollers Bearing Housing
Roller bearing end cap housing 6020-12 size 60*56*12.1*20 with 6201 bearing inside.
| Model | Photo | D | D1 | D3 | d | t | H | H1 | H2 |
| DZK 2508-0.8 |
 |
25 | 23.4 | 22 | 8.2 | 0.8 | 14.8 | 10.8 | 4 |
| DZK 3812-1.2 |
 |
38 | 35.6 | 28 | 12.1 | 1.2 | 17 | 13 | 4 |
| DZK 5012-1.2 |
 |
50 | 47.6 | 28 | 12.1 | 1.2 | 19 | 15 | 4 |
| DZK 5012-1.5 |
|
50 |
47 |
28 | 12.1 | 1.5 | 19 | 15 | 4 |
| DZK 5015-1.5 |
 |
50 | 47 | 32 | 15.1 | 1.5 | 20 | 15 | 5 |
| DZK 5015-2.0 |
|
50 | 46 | 32 | 15.1 | 2 | 20 | 15 | 5 |
| DZK 6012-1.2 |
 |
60 | 57.6 | 28 | 12.1 | 1.2 | 19 | 14.5 | 4.5 |
| DZK 6012-1.5 |
|
60 | 57 | 28 | 12.1 | 1.5 | 19 | 14.5 | 4.5 |
| DZK 6015-2.0 |
 |
60 | 56 | 32 | 15.1 | 2 | 22 | 18 | 4 |
| DZK 6015-2.5 |
|
58 | 55 | 32 | 15.1 | 2.5 | 22 | 18 | 4 |
| DZK 7620-2.0 |
 |
76 | 72 | 47 | 20.1 | 2 | 26 | 22 | 4 |
| DZK 7620-2.5 |
|
76 | 71 | 47 | 20.1 | 2.5 | 26 | 22 | 4 |
| DZK 8920-3.0 |
|
89 | 83 | 47 | 20.1 | 3 | 28 | 24 | 4 |

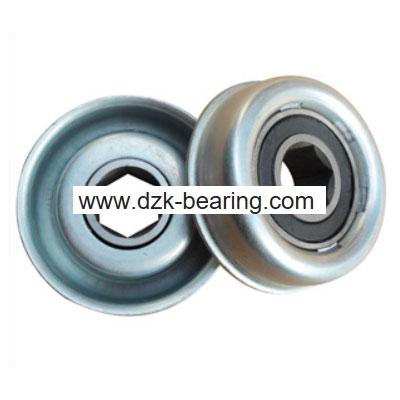

| DZK 5011-2.0 HEX |
 |
50 | 46 | 32 | 11.1 | 2 | 20 | 16 | 4 |

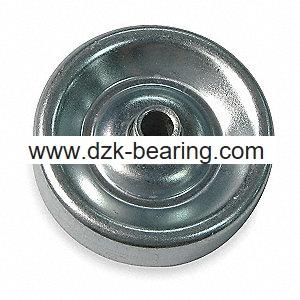

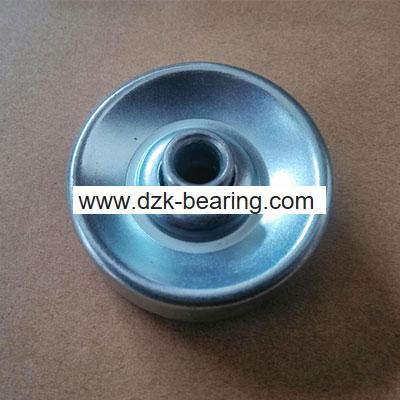

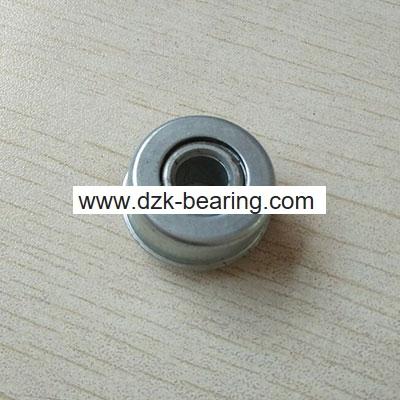

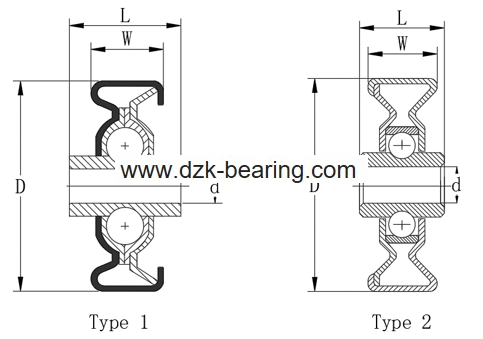

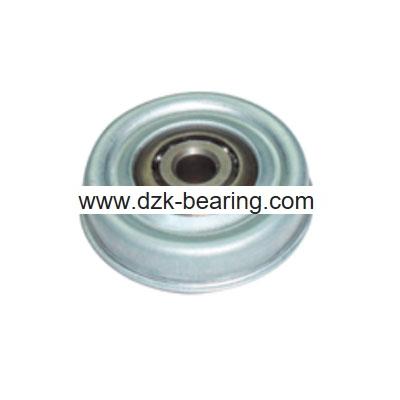

Pressed Steel Skate Wheel Or Bearing Inside Conveyor Bearing Drawing And Size:
| Conveyor Skate Wheel | |||||
| Model | Dimension (mm) | Type | |||
| D | d | L | W | ||
| DZK 38-01 | 38 | 6.2 | 25 | 13 | 1 |
| DZK 38-02 | 38 | 6.5 | 25 | 13 | 1 |
| DZK 40-01 | 40 | 6.2 | 25 | 20 | 1 |
| DZK 48-01 | 48 | 8.2 | 20 | 15.8 | 2 |
| DZK 48-02 | 48 | 8.2 | 24 | 15.8 | 2 |
| DZK 48-03 | 48 | 8.2 | 20 | 16 | 1 |
| DZK 48-04 | 48 | 8.2 | 24 | 16 | 1 |
| DZK 48-05 | 48 | 8.2 | 25 | 16 | 1 |
| DZK 48-06 | 48 | 6.5 | 20 | 16 | 1 |
| DZK 48-07 | 48 | 6.5 | 22.2 | 16 | 1 |
| DZK 49-01 | 49.2 | 6.5 | 20 | 16 | 1 |
| DZK 49-02 | 49.2 | 6.5 | 22.2 | 14.5 | 1 |
| DZK 49-03 | 49.2 | 8.2 | 20 | 16 | 1 |
| DZK 49-05 | 49.2 | 8.2 | 25 | 16 | 1 |
| DZK 49-06 | 49.2 | 8.2 | 20 | 15.8 | 2 |
| DZK 49-07 | 49.2 | 8.2 | 24 | 15.8 | 2 |
| DZK 49-09 | 49.2 | 8.2 | 24 | 16 | 1 |
| DZK 50-01 | 50 | 8.1 | 30 | 25 | 2 |
| DZK 50-02 | 50 | 10.2 | 20.2 | 15.5 | 2 |
| DZK 50-03 | 50 | 8.2 | 20 | 16 | 2 |
| DZK 50-04 | 50 | 8.2 | 24 | 16 | 2 |

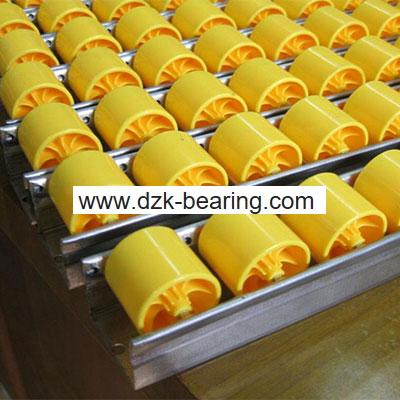

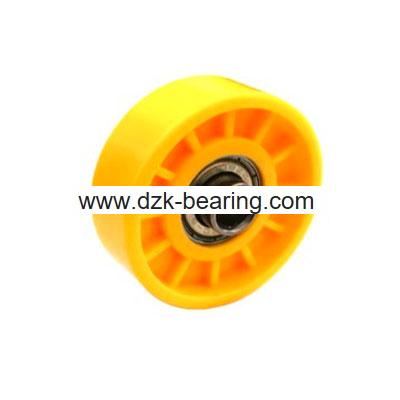

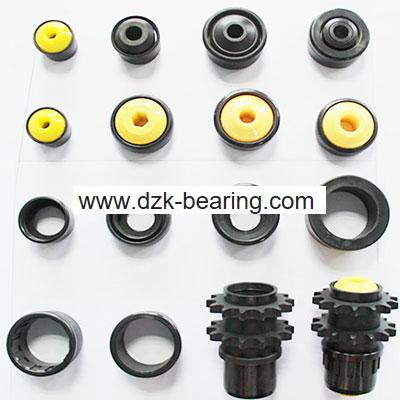

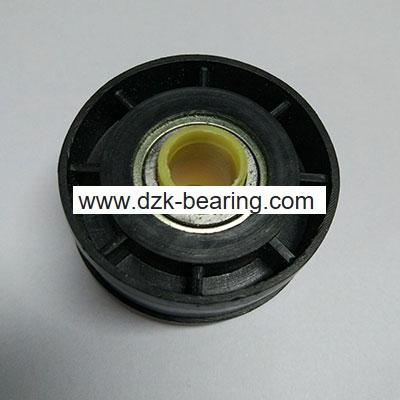

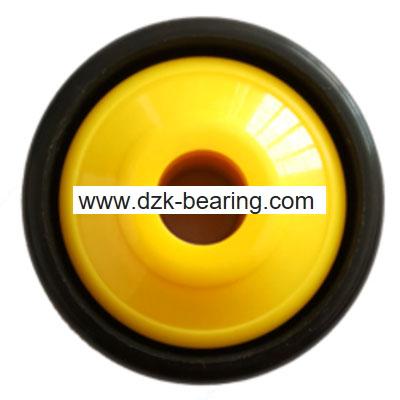

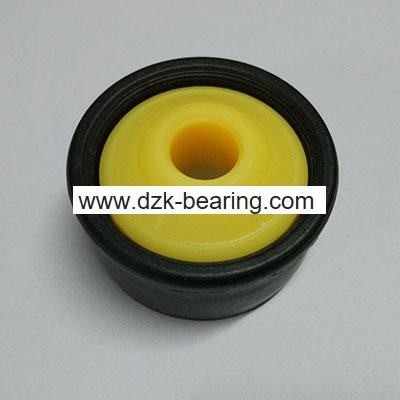

pom with bearing inside plastic skate wheels conveyor end cap bearing

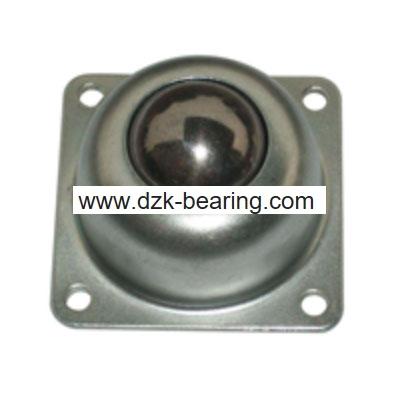

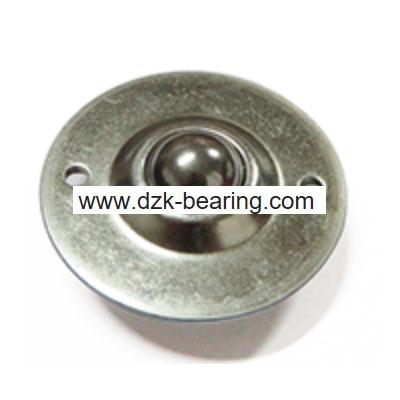

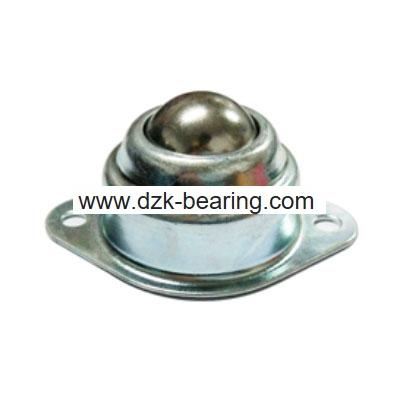

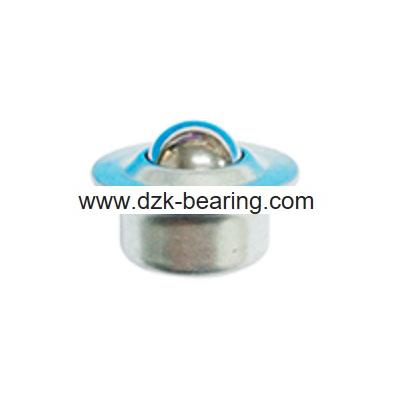

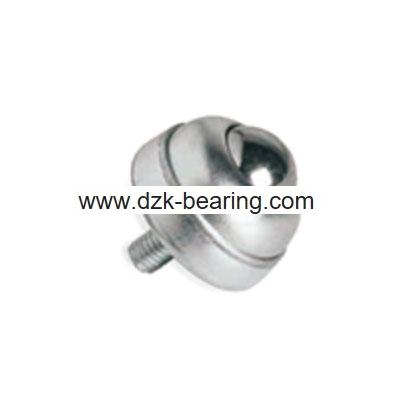

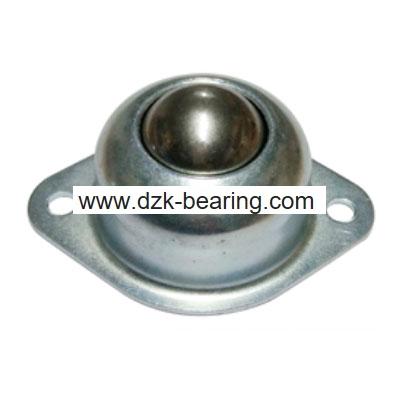

Ball transfer units
