C95400 Alloy B505 C954 Aluminum Bronze Bush CuZn25AI5Mn4Fe3 ASTM C86300 Bushing

Material:

1. CuZn25Al6Fe3Mn3 + Graphite

2. ZCuAl9Fe4Ni4Mn2 + Graphite

3. ZCuSn5AlPb5Zn5 + Graphite

4. ZCuSn10Zn2 + Graphite

5. HT250# Cast Iron + Graphite

6.CuSn6Zn6Pb3 + graphite or MOS2

7.CuSn12 + Graphite.

8. CuZn25Al6Fe3Mn3 (High-stress Brass)

Tech Date:

Physical and mechanical Performance	Density		8.2 g/cm3
	Linear Expansion Coefficient		1.6-2.0 10(-5)/℃
	Heat-conducting Coefficient		38-55W(/m.k)
	Tensile Strength		≥755 N/mm2
	Anti-compact Tenacity		≥400-500 KJ/m2
	Hardness		≥ 210 HB
	Flexibility Coefficient		100-140 KN/mm2
	Tensility		≥ 12%
	Friction	Oil Lubrication	0.03u
		Dry Lubrication	0.16u
	Working Temperature Limits		-40℃ ~+300℃
	Max Load Pressure		100N/mm2
	Max Linear Velocity		0.50 m/s
	Max PV Value		1.65N/mm2.m/s

Application:

used on consecutive casting and rolling machines,mine-exploiting equipments,ships,steam engine,injection molders and auto molds,anti-abrasion and anti-erosion parts,light industrial machines,tools,moving belt in the drying machine,door of the fireplace,instance,on no oil parts on the building,metallurgy and transportation machines,machinetool,agricultural machinery,crane electromotor,spring pin,steering shaff and transmission etc

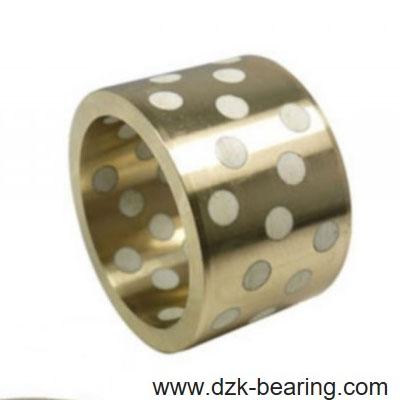

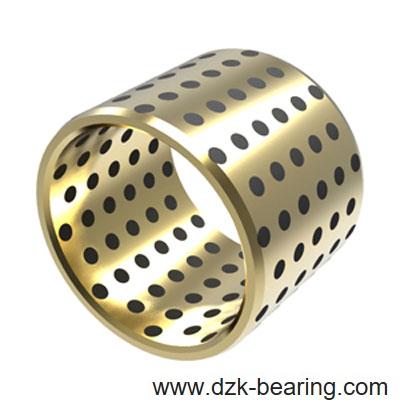

Photo:

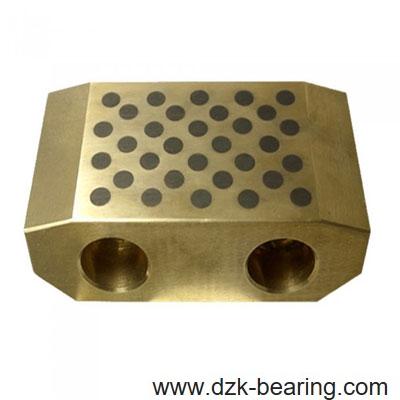

Custom-made guide bearing:

Cast Iron with Graphite bush:

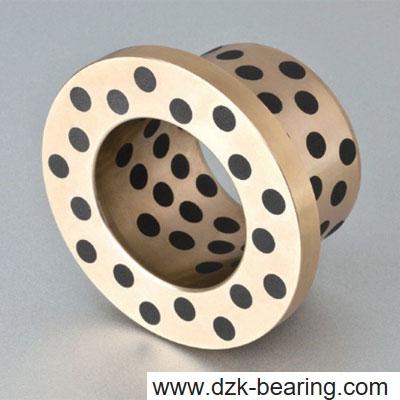

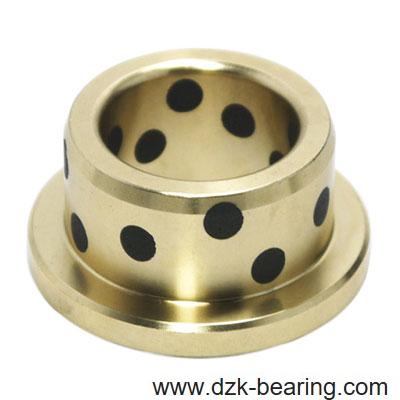

Flange bronze graphite bushing:

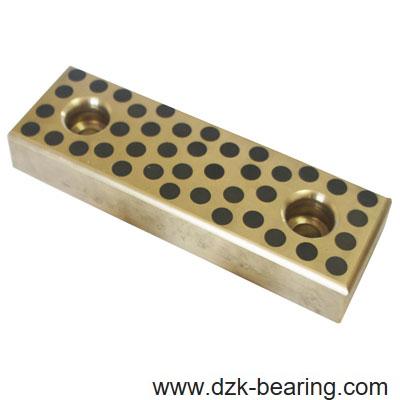

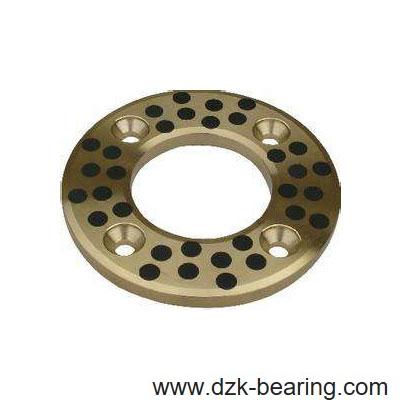

Slide Plate,Skateboards,Thrust Washers,Customized --- Brass Graphite Bushing Solid Lubricating Bearing:

Customized:

Client Drawing,different material,size and type,with graphite or not,etc.

Exporter of Aluminium Bronze Bushes - Aluminum Bronze Parts

Aluminium Bronze Bushing Feature

High strength

Corrosion resistance compare to other bronze

Low reactivity with sulfurous compounds

High hardness

High wear resistance

C95400 Aluminum bronze Bushing : C95400(B505 ) Aluminum bronze is the most common cast aluminum bronze, C95400 is used in many heavy duty, high load and high wear applications. Good tensile strength, ductility, weldability and resistance to fatigue. Typical applications include bushing,sliding bearing,washer,plate,strips.

Weight Calculator(C95400 ASTM B505 Aluminum bronze Bushing )

Standard-Stocked Cast Bronze Bushings

DZK-Bearing Produce the aluminum bronze alloys bushing & bearings as standard-stocked products in standard or customized size,Aluminum bronze is the highest strength standard copper-based alloy.C95400 Bronze Bushing Material :Aluminum in conjunction with iron and nickel in C954 acts as a strengthener in these alloys bushing. All of the aluminum bronzes can be heat treated, further increasing tensile strengths.

C95400 BUSHING SIZE OR ACCORDING COSTOMER DRAWINGS.

C95400 Aluminum Bronze Bushing

C95400 Aluminum Bronze / C954 Aluminum Bronze C95400 Aluminum Bronze is a tough, hard, aluminum bronze that resists wear, abrasion, and deformations under high compressive loads. When mating with dissimilar metals, C95400 Aluminum Bronze prolongs part life, cuts maintenance costs, friction, galling, and seizing are reduced.

SHAPES

C95400 Aluminum Bronze Bushing

Flat Strips

Flange Bushing

Trust Washer

Material	Tin bronze (C83600/C93200/CuSn12/CuSn7Zn4Pb7); Aluminum Bronze (C62900/C95400/C95500/CuAl10Fe5Ni5)
Standard	ASTM/ JIS/ ASME/ AISI/ EN/ BS
ID	20-1000mm
OD	25-1500mm
Sample	Available
Package	1pc/neutral bag or blister bag
Production time	Around 25 days
Load port	china

Application

C954 Aluminum Bronze C95400 Aluminum Bronze C954 Aluminum Bronze

Sliding Bearings

Wear plates

Bushing

Gibs and Ways

Sleeve Bearings

Valve Seats

Guide Pin Bushings

CuZn25AI5Mn4Fe3 Bush 62*50*50mm ASTM C86300

Precision Bronze Cast Bearings Manufacturers

506250 Metric Graphite Plugged Sleeve 50 ID x 62 OD x 50 OAL

Graphite Plugged Bronze Bushings are all self-lubricating and maintenance free. These bushings are machined out of continuous cast bronze and plugged with solid lubricant plugs. A bushing and it's mating

surface should always be seperated by a film of lubricant. With Graphite Plugged Bronze Bushings no form of supplementary lubrication is required.

Self-Lubricating Bushings for Guide Pins can save time and money in the design, construction and operation of injection molds.

Graphite dotted self-lubricating, CuZn25Al6Mn4Fe3 Solid Lubricant Inlaid Bearing, self-lubricating materials

Among those professional cuzn25al6mn4fe3 solid lubricant inlaid bronze bearing manufacturers in China, welcome to buy customized and low price cuzn25al6mn4fe3 solid lubricant inlaid bearing or get its free sample from our factory. CuZn25Al6Mn4Fe3 Solid lubricant inlaid bearing.

Quality CuZn25AI5Mn4Fe3 Shaft Bush Bronze Material Equivalent ASTM C86300 62*50*50 mm Diameter metric size bronze bearings Supplier, operating Temperature -40℃ to 300 ℃ Graphite plugs bronze sleeve made by the leading manufacturer. Order Today! Made in China. Standard and Custom Bronze Oilless Bushing, C86200, C86300, C93200, C95400 bronze bearing made to order from china.

Material: Cast Bronze and Solid Lubricant Plugs

Graphite Plugged Cast Bronze Bushings can be utilized where heavy loads must be supported at low to medium speeds- max PV 46,000, P-Load 7,100, V-SFM-49

The Plug Graphite Cast Bronze Bushing is able to withstand high temperatures up to 570 F

The self-lubricating feature allows bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.

Self lubrication with specially embedded solid lubricants reduces friction. Coefficient of Friction: 0.04 to 0.2 typical

CuZn25AI5Mn4Fe3 Bush's Features

Self Lubricated when standard lubrication is impractical

Performs well under various loads, types and speed operations

Resists corrosive and hostile environments

Compatible with most viscous lubricants & Oil and Grease applications

Typical Applications:

Link Bushings for Construction Equipment, Boom Link Bushings for Power Shovels, Toggle Link & Guide Bushings for Injection Mold Machines, Steel Mill Equipment, Furnace Dragouts, Drying Equipment, Roasters, Press Dies, Assembly Lines, Hydro-Electric Structures, Winches, Hoisting Equipment, Tire and Paper Mill Machinery and Many Other Industrial Applications.

CuZn25AI5Mn4Fe3 Bronze Bushing Size

linear graphite copper set bushing oil self-lubricating JDB ID 40mm OD 45mm 48mm 50mm

graphite bronze bushing 40x50x25

graphite bronze bushing 40x50x65

graphite bronze bushing 40x50x20

graphite bronze bushing 40x50x50

graphite bronze bushing 40x45x35

graphite bronze bushing 40x45x20

graphite bronze bushing 40x45x25

graphite bronze bushing 40x48x40

graphite bronze bushing 40x45x40

graphite bronze bushing 40x45x50

graphite bronze bushing 40x50x35

graphite bronze bushing 40x50x60

graphite bronze bushing 40x50x45

graphite bronze bushing 40x50x80

graphite bronze bushing 40x50x30

graphite bronze bushing 40x45x30

graphite bronze bushing 40x48x30

graphite bronze bushing 40x50x40

graphite bronze bushing 40x50x50

graphite bronze bushing 40x50x45

graphite bronze bushing 40x50x70

graphite bronze bushing 40x50x60

40 x 50 x 50 Length , 60length , 70 length ,100length , 150 length

50 x 62 x length 50mm, 60mm ,70,mm,100mm,150mm

50 x 65x length 50mm, 60mm ,70,mm,100mm,150mm

60 x 70x length 50mm, 60mm ,70,mm,100mm,150mm

65 x 80 x length 50mm, 60mm ,70,mm,100mm,150mm

65 x 75 x length 50mm, 60mm ,70,mm,100mm,150mm

70 x 80 x length 50mm, 60mm ,70,mm,100mm,150mm

70 x 85 x length 50mm, 60mm ,70,mm,100mm,150mm

80 x 90 x length 50mm, 60mm ,70,mm,100mm,150mm

80 x 95 x length 50mm, 60mm ,70,mm,100mm,150mm

90 x 100 x length 50mm, 60mm ,70,mm,100mm,150mm

90 x 105 x length 50mm, 60mm ,70,mm,100mm,150mm

100 x 110 x length 50mm, 60mm ,70,mm,100mm,150mm

100 x 115 x length 50mm, 60mm ,70,mm,100mm,150mm
