Transport equipment accessories conveyor roller steel bearing end cap for TK 6308 bearing

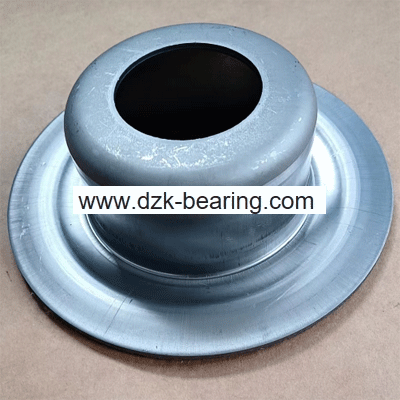

  • Type: Flanged Bearing House for Conveyor Roller Idler
  • Material: SPHC, SPHD, SPHE, SPCC,cold rolled steel plate
  • Model: TK/DTII/TKII/DT75/customized special type Pillow Block
  • Bearing size: 6204/6205/6206/6305/6306/6307/6308/6310
  • Product description: Transport equipment accessories conveyor roller steel bearing end cap for TK 6308 bearing
  • INQUIRY

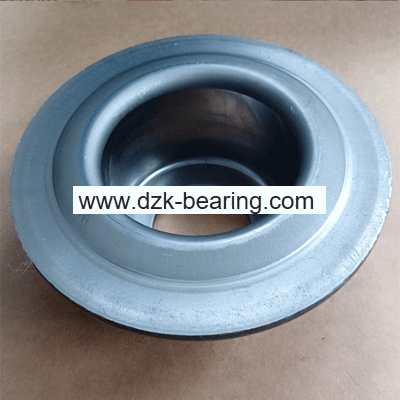

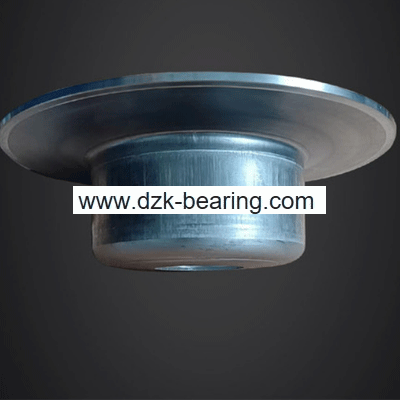

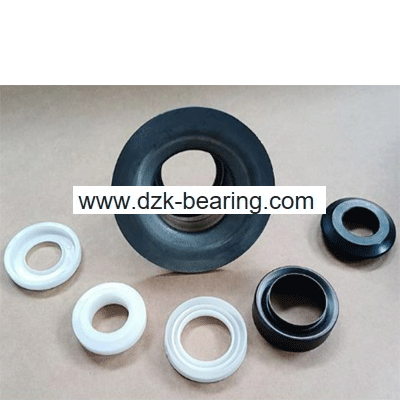

Conveyor idler roller bearing housing and labyrinth seal bearing / Conveyor Idler bearing housing:

Stamping bearing housing and its supporting seals, relying on the advantages of strong molds, the selection of high-quality materials, stamping housings with high precision, good gloss, no tensile scars and burrs, etc., is the preferred accessory for roller manufacturers. The variety of production is complete.

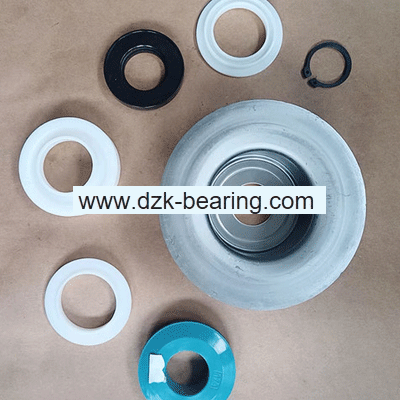

The roller bearing seat is composed of a seat body and a bearing mounted in the seat body, a labyrinth inner and outer seal ring, and an outer ring and a large end face of the inner seal ring have an annular waterproof and dustproof cover at the corresponding end. The inner and outer seals have a labyrinth gap at the shroud.
Since the protective cover and the dust cover in the original structure are omitted, the structure is simple, the parts are reduced, the depth of the seat body is reduced, the material is saved, and the manufacturing cost is greatly reduced. At the same time, by extending the gap and length of the labyrinth, the sealing effect is improved, and the service life of the roller can be extended.

The good sealing of the roller bearing housing requires strict quality control of the components, ensuring the structural and sealing properties of the components, and the roller bearing housing has a good sealing performance. A good roller seal will also bring you better benefits. Our main varieties are DT-II type, TK type, TR type, TD-75 type and other types of roller bearing housings and matching seals.

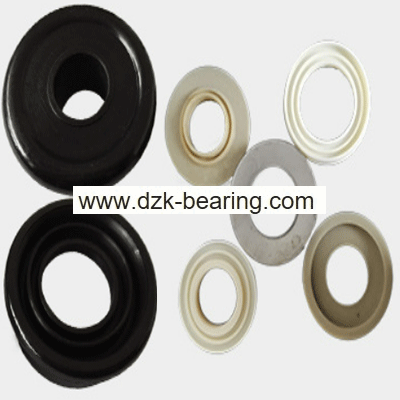

Materials :
♦ Bearing Housing: SPHC
♦ Sealing Ring: Nylon PA6
♦ Labyrinth Seal: POM
♦ Outer Cap: SPCC
♦ Dust Cover: Nylon PA6
Features:
♦Easy to install
♦Free maintenance
♦Long service term
♦Perfect sealing performance


DZK-DTII Idler roller bearing seat specification comparison table
Bearing Model Model D(0-0.03) D1(+0.037) D2 D3(0-0.16) d H H1 H2 t C r
204 DZK- 60*204 ø47 ø47.1
ø56 ø25 17 45 47.5 0.25 2.5 3
DZK- 76*204 ø47 ø47.1
ø70 ø25 17 45 47.5 0.25 2.5 3
DZK- 89*204 ø47 ø47.1 ø76 ø84 ø25 17 45 47.5 0.25 2.5 3
DZK- 108*204 ø47 ø47.1 ø78 ø103 ø25 17 45 47.5 0.25 2.5 3
DZK- 133*204 ø47 ø47.1 ø106 ø128 ø25 17 45 48 0.3 3 3
205 DZK- 89*205 ø52 ø52.1 ø76 ø84 ø30 18 46 48.5 0.25 2.5 3
DZK- 108*205 ø52 ø52.1 ø78 ø103 ø30 18 46 49 0.3 3 3
DZK- 133*205 ø52 ø52.1 ø108 ø128 ø30 18 46 49 0.3 3 3
DZK- 159*205 ø52 ø52.1 ø126 ø153 ø30 18 46 49 0.3 3 3
305 DZK- 108*305 ø62 ø62.1 ø96 ø103 ø30 19 49 52 0.3 3 3
DZK- 133*305 ø62 ø62.1 ø102 ø128 ø30 19 49 52 0.3 3 3
DZK- 159*305 ø62 ø62.1 ø112 ø153 ø30 19 49 52 0.3 3 3
DZK- 176*305 ø62 ø62.1 ø126 ø170 ø30 19 49 53 0.3 4 3
DZK- 194*305 ø62 ø62.1 ø138 ø188 ø30 19 49 53 0.3 4 3
306 DZK- 108*306 ø72 ø72.1 ø98 ø103 ø35 21 51 54 0.3 3 3
DZK- 133*306 ø72 ø72.1 ø106 ø128 ø35 21 51 54 0.3 3 3
DZK- 159*306 ø72 ø72.1 ø116 ø153 ø35 21 51 54 0.3 3 3
DZK- 176*306 ø72 ø72.1 ø136 ø170 ø40 21 51 55 0.35 4 3
DZK- 194*306 ø72 ø72.1 ø139 ø188 ø40 21 51 55 0.35 4 3
307 DZK- 108*307 ø80 ø80.1 ø116 ø103 ø40 23 53 57 0.3 3 3
DZK- 133*307 ø80 ø80.1 ø116 ø128 ø40 23 53 57 0.3 3 3
DZK- 159*307 ø80 ø80.1 ø126 ø153 ø40 23 53 57 0.3 3 3
DZK- 176*307 ø80 ø80.1 ø126 ø170 ø45 23 53 57 0.35 4 3
DZK- 194*307 ø80 ø80.1 ø136 ø188 ø45 23 53 57 0.35 4 3
308 DZK- 108*308 ø90 ø90.1 ø ø103 ø45 25 55 59 0.3 4 3
DZK- 133*308 ø90 ø90.1 ø118 ø128 ø45 25 55 59 0.3 4 3
DZK- 159*308 ø90 ø90.1 ø135 ø153 ø45 25 55 59 0.3 4 3
DZK- 176*308 ø90 ø90.1 ø135 ø170 ø50 25 55 59 0.35 4 3
DZK- 194*308 ø90 ø90.1 ø136 ø188 ø50 25 55 59 0.35 4 3
DZK- 219*308 ø90 ø90.1 ø139 ø213 ø50 25 55 59 0.35 4 3
309 DZK- 194*309 ø100 ø100.1 ø145 ø188 ø55 27 57 61 0.35 4 3
DZK- 219*309 ø100 ø100.1 ø145 ø213 ø55 27 57 61 0.35 4 3
310 DZK- 194*310 ø110 ø110.1 ø156 ø188 ø60 29 60 65 0.35 5 3
DZK- 216*310 ø110 ø110.1 ø156 ø213 ø60 29 60 65 0.35 5 3













D: Bearing seat position dimension
D1: Bearing seat seal ring size
D2: Roll diameter
D3: Cutting diameter
C: Plate thickness

H: Bearing position height
H1: Bearing seat depth
H2: Bearing seat height
d: Punch hole diameter
r: Bearing inside r

R: Bearing seat port R
t: Section runout

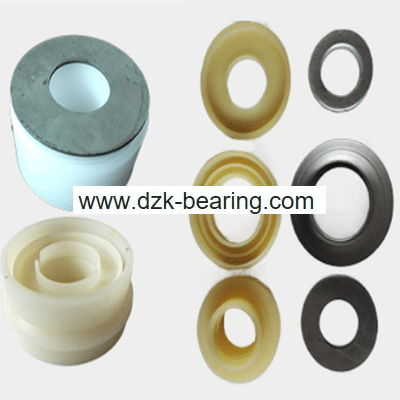

Size and dimension of labyrinth seal bearing/bearing housing set :

manufacturer supply bearing housing set conveyor roller used pressed labyrinth seal bearing

ISO STANDARD


Pipe OD

Bearing

60
63
76
89
102
108
114
127
133
140
152
159
165
176
194
219
245
6202
*
*
*
*
*
*
*










6203
*
*
*
*
*
*
*
*









6204
*
*
*
*
*
*
*
*
*
*







6205
*
*
*
*
*
*
*
*
*
*
*
*





6206


*
*
*
*
*
*
*
*
*
*
*
*
*
*

6207



*
*
*
*
*
*
*
*
*
*
*
*
*

6305


*
*
*
*
*
*
*
*
*
*
*
*
*
*

6306



*
*
*
*
*
*
*
*
*
*
*
*
*

6307




*
*
*
*
*
*
*
*
*
*
*
*

6308





*
*
*
*
*
*
*
*
*
*
*

6309







*
*
*
*
*
*
*
*
*
*
6310








*
*
*
*
*
*
*
*
*
6311











*
*
*
*
*
*
6312













*
*
*
*
Thickness: 2.5mm,3.0mm,3.5mm,4.0mm,5.0mm

Housing type: TK, TKII, DTII, TD75,custom-make.

CEMA STANDARD

Pipe OD 6204/20mm
CEMA B
6205/25mm
CEMA C
6305/25mm
CEMA D
6306/30mm
CEMA E
6307/35mm
CEMA E*
6308/40mm
CEMA F
Bearing
4.0 inch * * * * *
5.0 inch * * * * * *
6.0 inch
* * * * *
7.0 inch
* * * * *
8.0 inch

* * * *
Thickness: 2.5mm,3.0mm,3.5mm,4.0mm,5.0mm
Housing type: TK, TKII, DTII, TD75,custom-make.

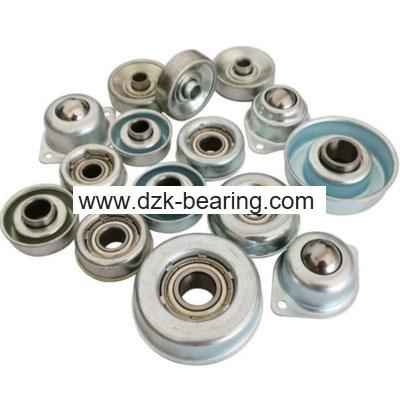

Conveyor Bearing

Model Photo D D1 D3 d t H H1 H2
DZK 2508-0.8
25 23.4 22 8.2 0.8 14.8 10.8 4
DZK 3812-1.2
38 35.6 28 12.1 1.2 17 13 4
DZK 5012-1.2
50 47.6 28 12.1 1.2 19 15 4
DZK 5012-1.5
50 47
28 12.1 1.5 19 15 4
DZK 5015-1.5
50 47 32 15.1 1.5 20 15 5
DZK 5015-2.0
50 46 32 15.1 2 20 15 5
DZK 6012-1.2
60 57.6 28 12.1 1.2 19 14.5 4.5
DZK 6012-1.5
60 57 28 12.1 1.5 19 14.5 4.5
DZK 6015-2.0
60 56 32 15.1 2 22 18 4
DZK 6015-2.5
58 55 32 15.1 2.5 22 18 4
DZK 7620-2.0
76 72 47 20.1 2 26 22 4
DZK 7620-2.5
76 71 47 20.1 2.5 26 22 4
DZK 8920-3.0
89 83 47 20.1 3 28 24 4
DZK 5011-2.0 HEX
50 46 32 11.1 2 20 16 4

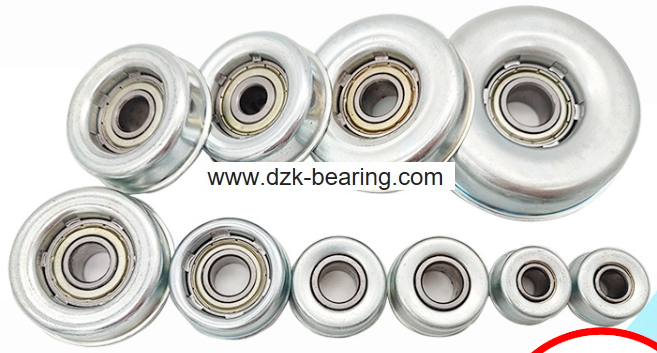

Pressed Steel Skate Wheel Conveyor Bearing Drawing And Size:


Conveyor Skate Wheel
Model Dimension (mm) Type
D d L W
DZK 38-01 38 6.2 25 13 1
DZK 38-02 38 6.5 25 13 1
DZK 40-01 40 6.2 25 20 1
DZK 48-01 48 8.2 20 15.8 2
DZK 48-02 48 8.2 24 15.8 2
DZK 48-03 48 8.2 20 16 1
DZK 48-04 48 8.2 24 16 1
DZK 48-05 48 8.2 25 16 1
DZK 48-06 48 6.5 20 16 1
DZK 48-07 48 6.5 22.2 16 1
DZK 49-01 49.2 6.5 20 16 1
DZK 49-02 49.2 6.5 22.2 14.5 1
DZK 49-03 49.2 8.2 20 16 1
DZK 49-05 49.2 8.2 25 16 1
DZK 49-06 49.2 8.2 20 15.8 2
DZK 49-07 49.2 8.2 24 15.8 2
DZK 49-09 49.2 8.2 24 16 1
DZK 50-01 50 8.1 30 25 2
DZK 50-02 50 10.2 20.2 15.5 2
DZK 50-03 50 8.2 20 16 2
DZK 50-04 50 8.2 24 16 2

Yellow/blue/grey color pom with bearing inside plastic skate wheels conveyor bearing

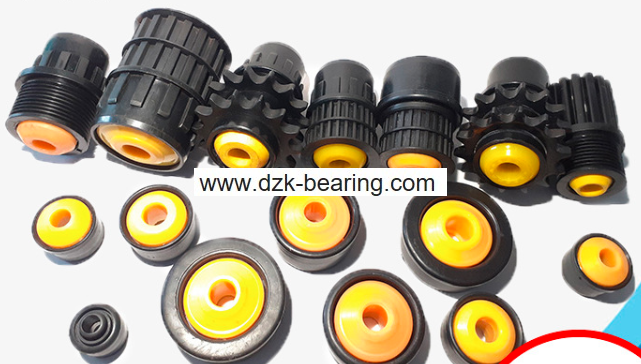

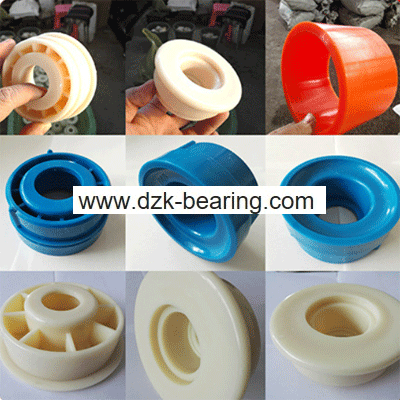

Conveyor roller plastic end cap bearing
