Slide Bearing

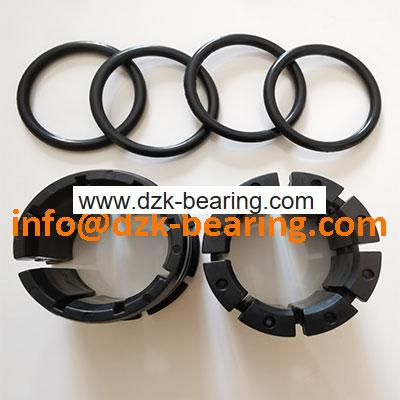

Suitable for Toyota Highlander/Reiz/Crown RAV4 steering gear bushing steering gear rack bushing repair kit
- Rack Bushes for Auto
- Material:NBR,Nitrile rubber
- steering gear bushing for: Toyota Highlander,Reiz,Crown RAV4
- Product description: Suitable for Toyota Highlander/Reiz/Crown RAV4 steering gear bushing steering gear rack bushing repair kit
Suitable for Toyota HighlanderReizCrown RAV4 steering gear bushing steering gear rack bushing repair kit

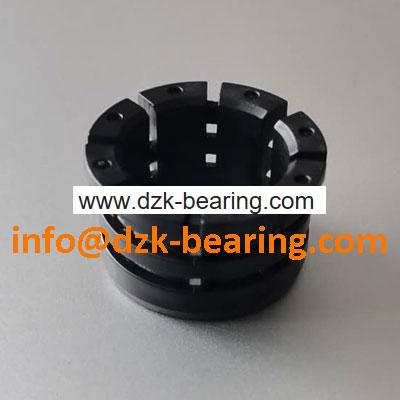

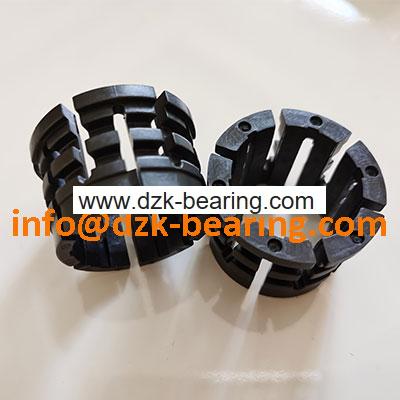

Product Name: Steering Gear Bush
Price: indicate a single price,email for got quote.
Suitable models: electronic mechanical steering gear, hydraulic steering gear is not suitable
Product physical form: subject to the received!
Standard product of steering rack bushing and rack support block
| Rack shaft diameter | Name | Standard | Material | Shaft outer diameter | Shell inner diameter | Remark |
| φ21 | Rack bushing | In development | 500CL #80+NBR |
|
|
|
| Rack support block | None |
|
|
|
|
|
| φ22 | Rack bushing | Have | 500CL #80+NBR | φ22 (0.00/-0.01) | φ30.00 (0/±0.05) |
|
| Rack support block | None |
|
|
|
|
|
| φ24 | Rack bushing | Have | 500CL #80+NBR | φ24 (-0.02/-0.04) | φ31.6 (-0.09/-0.13) |
|
| Rack support block | None |
|
|
|
|
|
| φ25 | Rack bushing-1 | Have | 500CL #80+NBR | φ25 (0.00/-0.05) | φ32.40 (±0.03) | 0126/25 |
| Rack bushing-2 | Have | 500CL #80+NBR | φ25 (0.00/-0.04) | φ32.25 (±0.03) | 0102/25 | |
| φ26 | Rack bushing | Have | 500CL #80+NBR | φ26 (0.00/-0.02) | φ33.30 (±0.03) |
|
| Rack support block | None |
|
|
|
|
|
| φ27 | Rack bushing | Have | 500CL #80+NBR | φ27 (0.00/-0.033) | φ34.50 (0.00/+0.025) | 089/27 |
| Rack support block | None |
|
|
|
|
|
| φ28 | Rack bushing | Have | 500CL #80+NBR | φ28 (0.00/-0.02) | φ35.50 (±0.05) |
|
| Rack support block | None |
|
|
|
|
|
| φ30 | Rack bushing | Have | 500CL #80+NBR | φ30 (0.00/-0.021) | φ37.49 (±0.01) | 0126/30 |
| Rack support block | None |
|
|
|
|

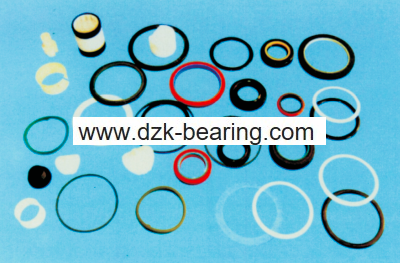

Seals for automotive power steering
List of Seals for Automobile Power Steering (φ100 Bore)
|
No. |
Name |
Specification |
Material |
Qty |
|
1 |
Seal ring |
φ100x96x3.3 |
PTFE (Teflon) |
1 |
|
2 |
O-ring |
φ96x3.12 |
NBR (Nitrile rubber) |
1 |
|
3 |
Seal ring |
φ60x56x2.2 |
PTFE (Teflon) |
3 |
|
4 |
O-ring |
φ63x1.9 |
NBR (Nitrile rubber) |
3 |
|
5 |
Retaining ring |
φ63x1.953x45x2.1 |
PTFE (Teflon) |
1 |
|
6 |
High pressure ring |
φ54.5x44.5x3 |
NBR (Nitrile rubber) |
1 |
|
7 |
Retaining ring |
φ58x50x2.1 |
PTFE (Teflon) |
2 |
|
8 |
High pressure ring |
φ59.5x49.5x3 |
NBR (Nitrile rubber) |
2 |
|
9 |
Seal ring |
φ36x32.8x3.5 |
PTFE (Teflon) |
1 |
|
10 |
O-ring |
φ100x3.1 |
NBR (Nitrile rubber) |
2 |
|
11 |
O ring |
φ13x1.9 |
NBR (Nitrile rubber) |
1 |
|
12 |
O ring |
φ11x1.9 |
NBR (Nitrile rubber) |
1 |
|
13 |
O ring |
φ75x3.1 |
NBR (Nitrile rubber) |
1 |
|
14 |
Anti-dust seal |
φ50x63x7 |
NBR (Nitrile rubber) |
1 |
|
15 |
Dust cover |
φ50x20x5 |
NBR (Nitrile rubber) |
1 |
|
16 |
Oil seal |
φ25x40x7 |
NBR (Nitrile rubber) |
1 |
|
17 |
Bearing |
7000105 φ25x47x8 |
|
1 |
|
18 |
Retaining ring |
φ48 |
|
1 |
