DX POM Marginal Lubricating Bearing

  • DX Bearing Black Color POM Slide Bushing
  • DX Bearing Black Color POM Slide Bushing
  • DX Bearing Black Color POM Slide Bushing
  • DX Bearing Black Color POM Slide Bushing
  • DX Bearing Black Color POM Slide Bushing
DX Bearing Black Color POM Slide BushingDX Bearing Black Color POM Slide BushingDX Bearing Black Color POM Slide BushingDX Bearing Black Color POM Slide BushingDX Bearing Black Color POM Slide Bushing

DX Bearing Black Color POM Slide Bushing

  • Size: various sizes
  • Material: carbon steel+bronze powder+POM
  • POM Color: yellow,black,blue,red. With hole or without holes
  • Plating: Copper-plating or Tin-plating
  • Product description: DX Bearing Black Color POM Slide Bushing
  • INQUIRY

DX Bearing Black Color POM Slide Bushing


Material:

1. Steel + Bronze powder + POM + Pb

2. Steel + Bronze powder + POM  - Normally Used


Structure:

1. POM with/without lead : 0.3-0.5mm

2. Porous bronze : 0.2-0.3mm

3. Steel backing : 0.4-2.2mm

4. Tin-plating 0.005mm or copper plating 0.008mm


Type:

Sleeve,Cylindrical,Flange,Thrust Washer,strips,slide plate,customized


Physical and mechannical performance:

Load capacity

Static load 250N/mm2

Dymamic load 140N/mm2

Oscillating 60N/mm2


Speed limit(in oil) 2.5m/s


PV value limit

Oil lubrication 22N/mm2.m/s

Dry lubrication 2.8N/mm2.m/s


Friction coef u 0.05~0.25

Working temperature -40℃~+130℃

Themal conductivity 13W/mk

Coefficient of linear expansion 11x10(-6)/k


Feature:

Particularly suitable for heavy-duty, low-speed rotary motion, rocking motion, and frequent fluid-lubricated parts that are opened and closed under load. Long-term use without boundary lubrication can be achieved without refueling, while refuelling can be used during the process. The service life is more prolonged; the plastic layer on the surface can leave a certain margin when the shaft sleeve is formed and can be processed by pressing it into the opening to achieve a better assembly size


Application:


it is mainly used in metallurgical machinery, mining machinery, water conservancy machinery, automobile chassis, construction machinery, agricultural machinery, steel rolling machinery and so on


Photo:

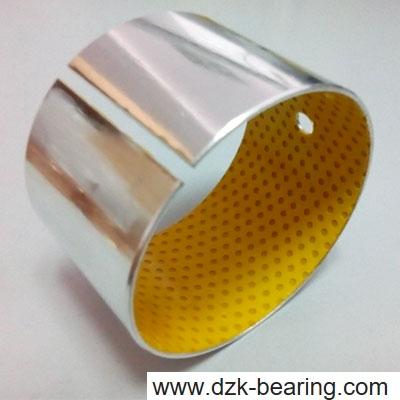

DX Maginal Bushing Carbon steel with bronze powder with POM Copper-plating WITH Hole Photo:


DX Maginal Bushing Carbon steel with bronze powder with POM Copper-plating WITHOUT Hole Photo:


DX Bush Bronze with bronze powder with POM Tin-plating Side Bearing Photo:

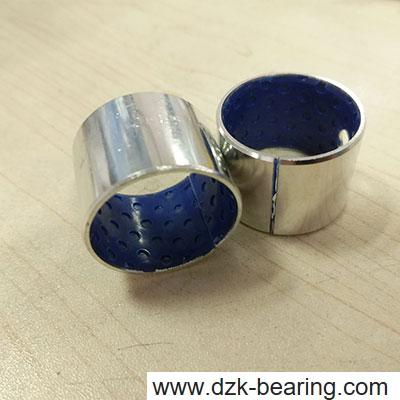

DX Bearings Black/Blue POM Bushing Photo:

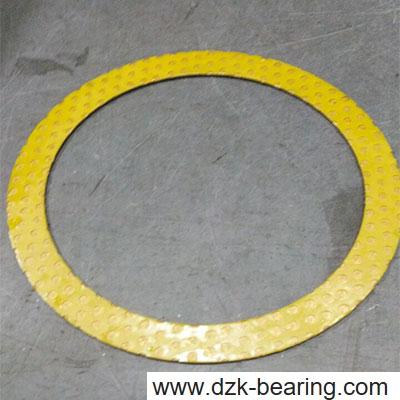

DX Washer POM Bush Photo:

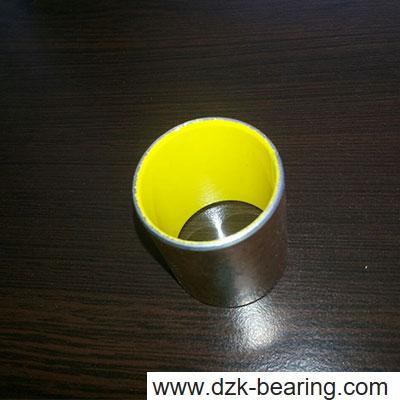

Full POM without little holes inside DX Bushes Sliding Bearings Photo:


Customized:

Client Drawing,with hole and the hole size can make big,without hole,full pom inside...
