Skate Wheel

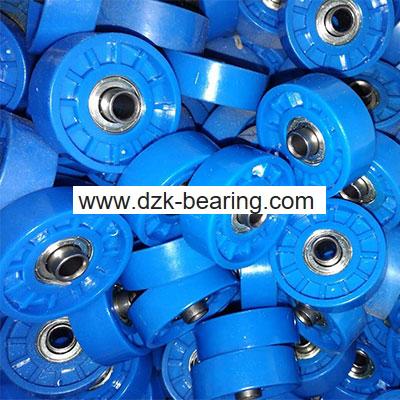

  • Blue color roller bearing plastic skate wheels
  • Blue color roller bearing plastic skate wheels
  • Blue color roller bearing plastic skate wheels
  • Blue color roller bearing plastic skate wheels
  • Blue color roller bearing plastic skate wheels
  • Blue color roller bearing plastic skate wheels
Blue color roller bearing plastic skate wheelsBlue color roller bearing plastic skate wheelsBlue color roller bearing plastic skate wheelsBlue color roller bearing plastic skate wheelsBlue color roller bearing plastic skate wheelsBlue color roller bearing plastic skate wheels

Blue color roller bearing plastic skate wheels

  • Name: Skate wheels
  • Material: plastic,pom,nylon
  • diameter size: 38mm,48mm,50mm etc
  • hole size: 6mm, 8mm etc
  • Product description: Blue color roller bearing plastic skate wheels
  • INQUIRY

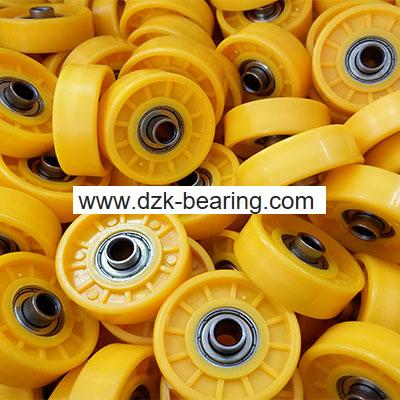

yellow/blue/grey color pom with bearing inside plastic skate wheels conveyor bearing

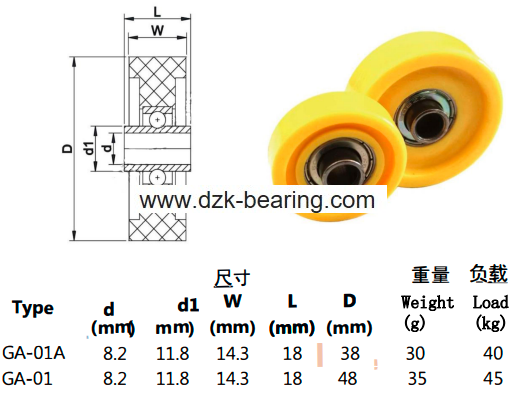

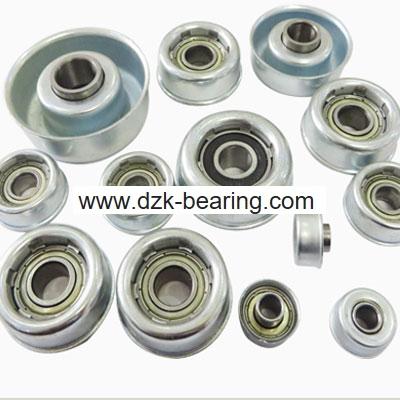

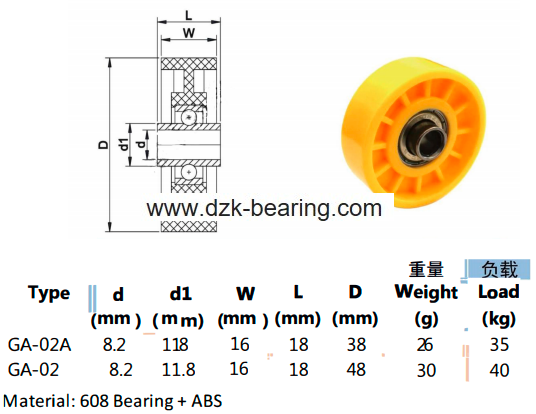

Pressed Steel Skate Wheel Conveyor Bearing Drawing And Size:

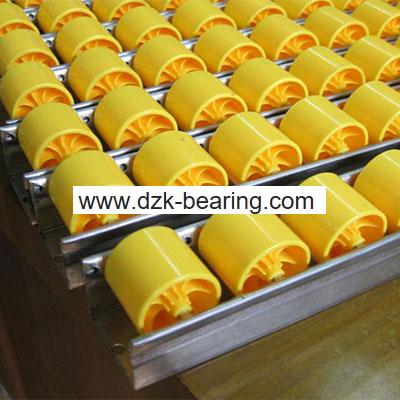

Conveyor Skate Wheel
Model Dimension (mm) Type
D d L W
DZK 38-01 38 6.2 25 13 1
DZK 38-02 38 6.5 25 13 1
DZK 40-01 40 6.2 25 20 1
DZK 48-01 48 8.2 20 15.8 2
DZK 48-02 48 8.2 24 15.8 2
DZK 48-03 48 8.2 20 16 1
DZK 48-04 48 8.2 24 16 1
DZK 48-05 48 8.2 25 16 1
DZK 48-06 48 6.5 20 16 1
DZK 48-07 48 6.5 22.2 16 1
DZK 49-01 49.2 6.5 20 16 1
DZK 49-02 49.2 6.5 22.2 14.5 1
DZK 49-03 49.2 8.2 20 16 1
DZK 49-05 49.2 8.2 25 16 1
DZK 49-06 49.2 8.2 20 15.8 2
DZK 49-07 49.2 8.2 24 15.8 2
DZK 49-09 49.2 8.2 24 16 1
DZK 50-01 50 8.1 30 25 2
DZK 50-02 50 10.2 20.2 15.5 2
DZK 50-03 50 8.2 20 16 2
DZK 50-04 50 8.2 24 16 2

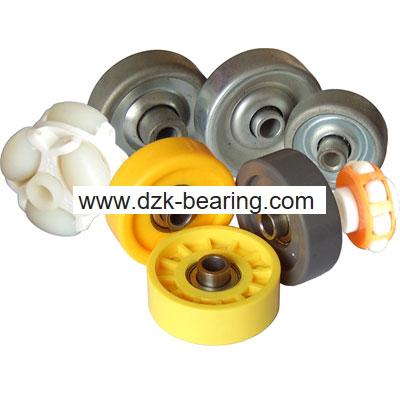

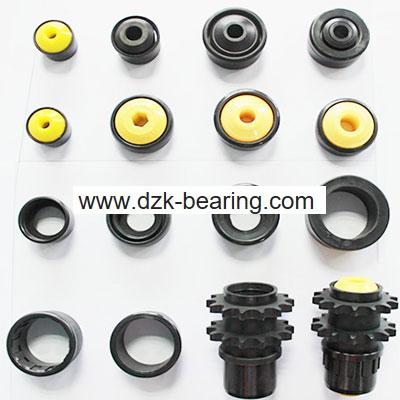

other kinds of skate wheel like bearing inside or hexagonal etc.

Model Photo D D1 D3 d t H H1 H2
DZK 2508-0.8
25 23.4 22 8.2 0.8 14.8 10.8 4
DZK 3812-1.2
38 35.6 28 12.1 1.2 17 13 4
DZK 5012-1.2
50 47.6 28 12.1 1.2 19 15 4
DZK 5012-1.5
50 47
28 12.1 1.5 19 15 4
DZK 5015-1.5
50 47 32 15.1 1.5 20 15 5
DZK 5015-2.0
50 46 32 15.1 2 20 15 5
DZK 6012-1.2
60 57.6 28 12.1 1.2 19 14.5 4.5
DZK 6012-1.5
60 57 28 12.1 1.5 19 14.5 4.5
DZK 6015-2.0
60 56 32 15.1 2 22 18 4
DZK 6015-2.5
58 55 32 15.1 2.5 22 18 4
DZK 7620-2.0
76 72 47 20.1 2 26 22 4
DZK 7620-2.5
76 71 47 20.1 2.5 26 22 4
DZK 8920-3.0
89 83 47 20.1 3 28 24 4
DZK 5011-2.0 HEX
50 46 32 11.1 2 20 16 4
